GE Model 6832 Blower
Price range: $957.60 through $976.80
Made to Order
Delivery Time: Ships In 14 Days
- Small footprint (60 mm depth) and a greater concentration of emitter points and internal circuitry suited for high humidity applications.
| Dimension | Specification |
|---|---|
| Input Voltage | 24 VDC (470 mA max) |

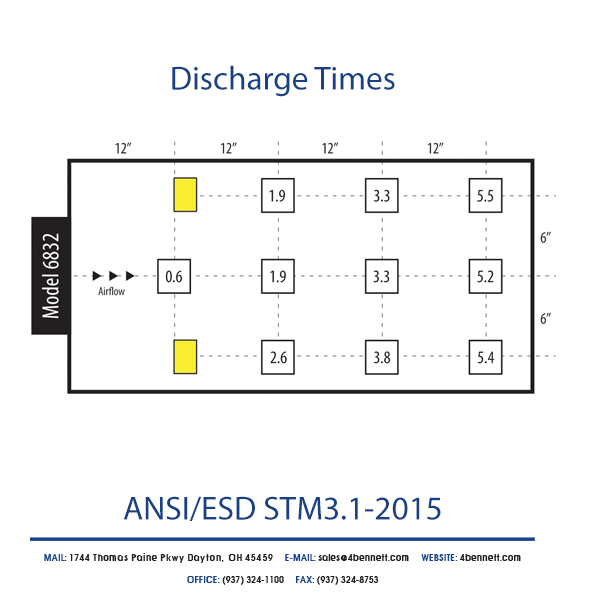

| Discharge Time | < 2 sec @ 1' (30 cm) (67p) taken in-line from center of fan (± 1000-100V) |
| Balance | 0±10V (typ) |
| Ion Emission | Steady-State DC |
| Emitter Points | Titanium; 8 per fan |
| Airflow | 129 cfm (typ) @ high speed |
| Cleanroom Class | Meets ISO 14644 Class 4 (Fed. Std. 209E Class 10) |
| Operating Environment | Temperature 50-90F (10-32C); humidity 30-70% relative humidity, non-condensing |
| Ozone | 0.005 ppm (typ) |
| Indicators | Green POWER on, red FAN stall; red FAULT with optional AUDIBLE ALARM |
| Audible Noise | Fan Speed Low: 52 dB; Fan Speed High: 61dB; measured @ 12" (30.5 cm) from fan |
| Mounting | Tilt lock mounting stand |
| Controls | Power/fan speed DIP switch with 4 speed/velocity settings, balance adjustment, FMS connections |
| Options | Audible Alarm |
| Enclosure | Powder-coated aluminum |
| Dimensions | 7.33" H x 5.12" W x 2.36" D (18.6 x 13 x 6.0 cm) |
| Weight | 2.03 lb (0.92 kg) |
| Warranty | Two year limited warranty |
