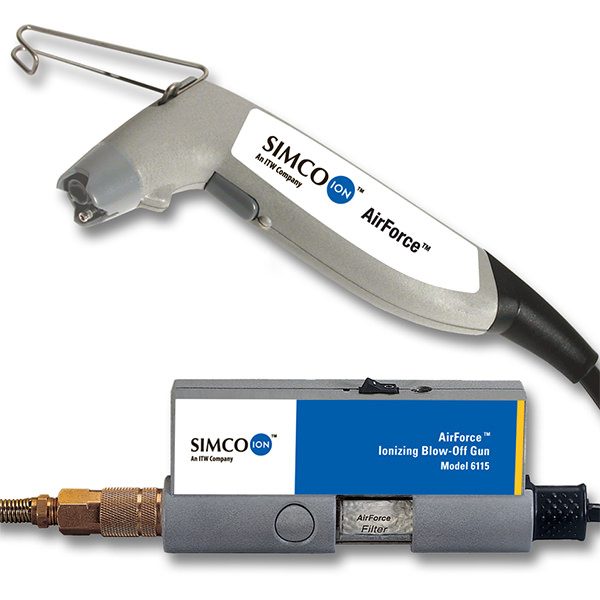

Superior Static Control for Sensitive Environments: The Simco-Ion AirForce™
In high-tech manufacturing, even a tiny electrostatic discharge can lead to catastrophic component failure. The AirForce™ Blow Off Gun is designed to meet the rigorous demands of the semiconductor, medical device, and hard drive industries, providing powerful cleaning and neutralizing capabilities without the risk of contamination.
Precision Performance, Cleanroom Ready

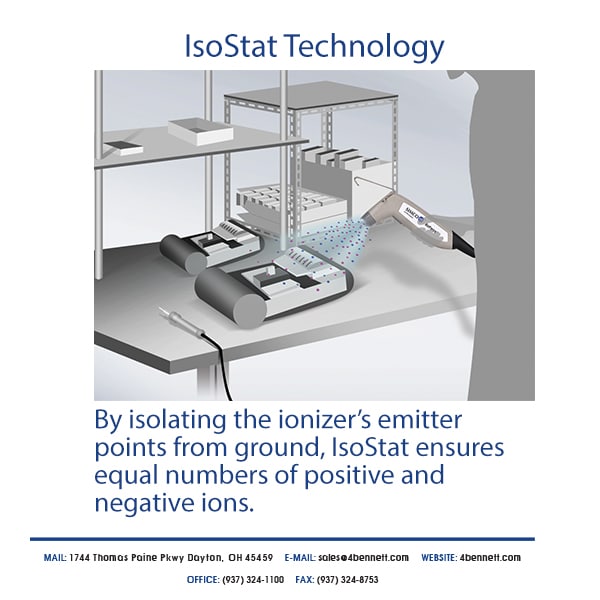

The AirForce™ isn’t just an air gun—it’s a precision instrument. Leveraging IsoStat® Technology, it provides a steady-state DC ion emission that is intrinsically balanced, ensuring your sensitive electronics are protected from over-voltage.
-
ISO Class 4 Certified: Engineered for use in the most stringent environments, meeting ISO 14644-1 Class 4 (Fed Standard 209E Class 10) requirements.
-
Effective Particle Removal: Delivers a 41g blow-off force at 30 PSI, ensuring stubborn dust and contaminants are cleared away instantly.
-
Ultra-Clean Airflow: Features a 99.9% efficient internal filter that traps particles as small as 0.01 microns, ensuring the gas hitting your product is pure.
-
Ergonomic & Durable: Lightweight at just 12 oz, the gun features a static-dissipative polycarbonate housing and a flexible 8-foot hose for maximum maneuverability.
Why Choose the AirForce™?
Whether you are assembling micro-optics or handling sensitive wafers, the AirForce™ Blow Off Gun provides the reliability and safety standards required by the world’s leading manufacturers. With its two-year limited warranty and low-maintenance design, it is a long-term solution for your contamination control needs.
Product Specifications
The AirForce™ Blow Off Gun is designed for high-precision cleaning in critical environments. Utilizing Simco-Ion’s patented IsoStat® technology, it provides intrinsically balanced ionization without the need for calibration. This ISO Class 4 certified tool is ideal for semiconductor, medical device, and hard drive manufacturing where particle contamination and ESD safety are paramount.
| Dimension | Specification |
| Discharge | ± 1000-100V 1.0 seconds @ 6″ (15.2cm), 30 PSI |
| Balance | ± 30V |
| Cleanroom Class | Meets ISO 14644-1 Class 4 (Fed Standard 209E Class 10) |
| Console Power | 24 VAC, 10W powered from wall transformer |
| LED Indicators | Green on both console and gun |

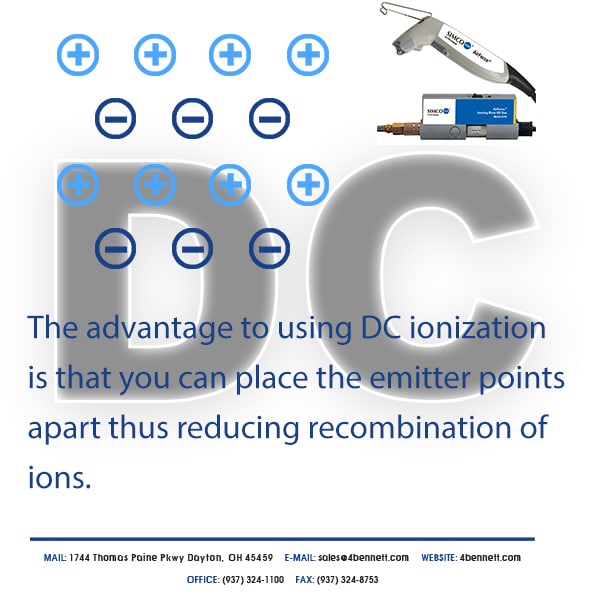

| Ion Emission | Steady State DC |
| Emitter Points | Tungsten emitter points |
| Audible Noise | 70 dBA @ 1m, 30 PSI |
| Conducted EMI | 29 dubV; average level 100 KHz to 1.1 MHz |
| Ozone | <0.005 ppm (typ) |
| Blow-off Force | 41g @ 30 PSI; Measured @ 3″ (7.6cm) from a 2″ (5.1 cm) diameter target |
| Air Hose | Static-dissipative polyurethane, 3/8″ outside diameter; 8 feet ( 2.4 meters) / 65 PSI |
| Gas Input | 20-65 PSI, Clean Dry Air or Nitrogen |
| Gas Connection | 1/4″ male industrial interchange quick disconnect |
| Gas Air Filter | 99.9% efficient, 0.01 micron or larger air particles; 99.9% coalescing efficiency |
| Mounting | Metal mounting plate attaches to back of console |
| Enclosure | Gun/console: static-dissipative polycarbonate (gun hanger 302 stainless steel);
optional outing stand for hands-free operation |
| Dimensions | Gun: 8 inches (length) x 3 inches (width) X 1 inch (depth) (20.3 X 7.6 X 2.5 cm);
Console: 8.5 inches (length) x 3 inches (width) x 1.6 inches (diameter)
(21.6 x 7.6 x 4.1 cm) |
| Weight | Gun: 12 oz (341g) with 8 foot (2.4m) air hose; Console: 11.5 oz (326g) |
| Warranty | Two year limited warranty |
Shipping & Availability
-
Lead Time: This product is typically built to order and ships in 6 weeks.
-
Carrier Options: We ship via FedEx. If you prefer to use your own corporate shipping account, please provide your account details during checkout.
-
Tracking: Once your AirForce™ Blow Off Gun has been calibrated, tested, and dispatched, you will receive an automated email with your tracking number.
Note on Lead Times: Due to the specialized nature of our Ionization Equipment, shipping windows vary by model. For a comprehensive list of estimated delivery times across our entire catalog, please visit our Lead Time & Shipping Information page.
Don’t See the Exact Specs You Need?
At Bennett and Bennett, we understand that static control requirements are rarely “one size fits all.” If our standard stock of Ionization Equipment doesn’t perfectly align with your technical data sheet, we can engineer a custom solution for you.
How Can We Help?
Our technical team is ready to assist you in navigating ESD specifications to ensure your components are fully protected.
Contact us today for a technical consultation or a custom quote.
