Precision Static Control for Pneumatic Lines
The Simco-Ion 6110 Air Ionizing Cartridge is engineered to neutralize electrostatic charges directly within compressed air lines. By integrating the ionizer into the airflow path, it ensures that the air used for cleaning or part-moving is completely balanced, preventing the re-attraction of contaminants and protecting sensitive electronic components from ESD events.
Key Functional Features
-

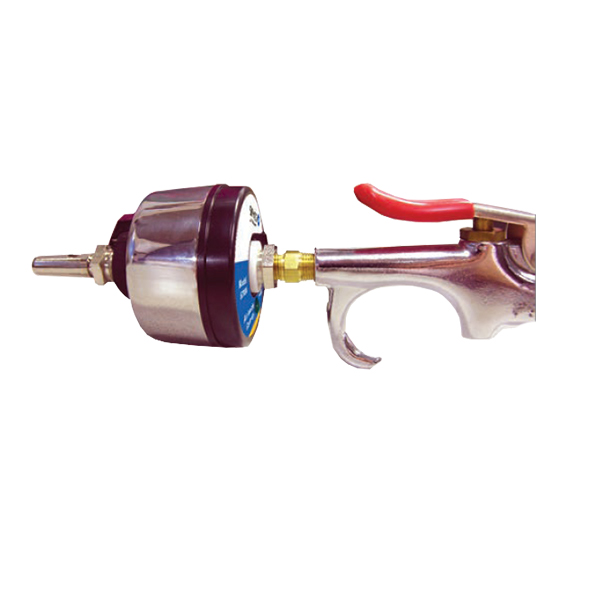

Plug-and-Play Integration: With standard 1/4″ NPT female fittings, the cartridge can be installed in-line with existing plumbing or mounted directly to the nozzle of an air gun.
-
Intelligent Airflow Sensing: Equipped with an internal sensor, the unit only activates when it detects a minimum airflow of 2 scfm, preserving the life of the tungsten alloy emitters and reducing power consumption.
-
Steady State DC Technology: Utilizes high-performance DC emission to provide a stable, consistent ion cloud, achieving a balance of better than ±25V at a 6-inch distance.
-
Daisy-Chain Power Capability: Designed for efficiency, a single 120 VAC wall transformer can provide enough 24 VAC power to operate up to 10 cartridges simultaneously using interconnect cables.
Ideal Applications
-
Cleanroom Blow-off: Removing micro-particulates from silicon wafers or medical device packaging without creating a static charge.
-
Electronics Assembly: Neutralizing charges on PCBs and components during automated assembly or manual cleaning.
-
Small Parts Cleaning: Ensuring small, lightweight plastic or metal parts don’t “clump” or stick to surfaces due to static electricity.
Maintenance & Reliability
Built for the rigors of industrial environments, the Air Ionizing Cartridge features a rugged, lightweight 6 oz housing and ultra-durable tungsten alloy emitters. The visible green LED provides an instant status check, ensuring operators know the unit is receiving power and ready for use.
Technical Specifications
The following data applies to the Simco-Ion 6110 Cartridge. These specifications ensure compatibility with high-precision assembly environments.
Air Cartridge Specs
| Dimension | Value |
| Input Voltage | 24 VAC, <1W from transformer |
| Balance | Better than ±25V @ 6 in. (15.2 cm) |
| Discharge | ±1,000 to 100V <4 sec |
| Power Source | Wall transformer 120 VAC (powers up to 10 units) |
| Indicators | Green POWER |
| Ion Emission | Steady State DC |
| Emitters | Tungsten Alloy |
| Airflow | At least 2 scfm |
| Air Line | 1/4 in. NPT female (input and output) |
| Dimensions | 2.2" D x 3.1" L (5.6 D x 7.9 L cm) not including fittings |
| Weight | 6 oz (170.1 g) |
| Warranty | 2 year limited warranty |
Electrical Requirements
-
Input Voltage: 24 VAC, <1W (from transformer)
-
Power Source: 120 VAC Wall Transformer (can power up to 10 units via daisy-chain)
-
Status Indicator: Integrated Green LED (Power ON)
Physical Characteristics
-
Dimensions: 2.2” D x 3.1” L (5.6 cm x 7.9 cm) excluding fittings
-
Weight: 6 oz (170.1 g)
-
Air Line Connection: 1/4 inch NPT female (Input and Output)
-
Emitter Points: Durable Tungsten Alloy
Compliance & Reliability
33-1420-01 Wall Transformer Specs
If you are utilizing the Cartridge with 120 VAC Power Supply Kit, the following power specifications apply:
| Dimension | Value |
| Input Voltage | 120 VAC ± 10% 60 Hz |
| Output Voltage | 24 VAC ± 5% @ 500 mA |
| Dimensions | 3.0"H x 1.9"W x 1.6"D ( 76.5 x 48.5 x 40 mm) |
| Weight | 0.9 lb (0.4 kg) |
📄 Download Full Simco-Ion 6110 Technical Data Sheet
What’s in the Box?
Choose the configuration that best fits your existing infrastructure. Whether you are adding to an established daisy-chain or setting up a new station, we have a SKU tailored for your needs.
SKU Options & Included Components
Component Breakdown
-
Air Ionizing Cartridge: The core unit featuring 1/4″ NPT fittings and internal sensing.
-
120V/24 VAC Power Supply: A wall transformer required to power the unit. One transformer can support up to 10 cartridges.
-
External Airflow Sensor: Recommended for applications where the internal sensor may not meet specific sensitivity requirements or for complex pneumatic setups.
-
Interconnect Cable: A 10ft RJ-11 cable used to link the cartridge to the power supply or to “daisy-chain” multiple cartridges together.
Note for Setup: If this is your first purchase, we recommend the Cartridge with 120 VAC Power Supply Kit to ensure you have the necessary power components to begin operation immediately.
Need to expand your current system?
If you already have a power supply and simply need to add more ionization points, the standalone Air Ionizing Cartridge is the most cost-effective choice for daisy-chaining.
Shipping Information
We strive to get your static control solutions to you as quickly as possible. Please review the specific lead times and shipping policies for the Air Ionizing Cartridge below.
-
Standard Lead Time: This product currently has a lead time of approximately 6 weeks.
-
Order Confirmation: You will receive an automated email once your order is placed, followed by a specific ship-date estimate from our logistics team within 24–48 hours.
-
Shipping Carrier: Orders are typically shipped via FedEx. You will receive a tracking number the moment your package leaves our facility.
-
Partial Shipments: If you are ordering multiple items (such as ESD Matting or Cleanroom Apparel) along with this cartridge, we can provide partial shipments upon request to get your in-stock items to you sooner.
Need it faster? Lead times can vary based on manufacturer stock. If you have a mission-critical deadline, please Contact Us or call +1(937)-324-1100 to check for any expedited options or current shelf stock.
Don’t See the Exact Specs You Need?
At Bennett and Bennett, we understand that static control requirements are rarely “one size fits all.” If our standard stock of Ionization Equipment doesn’t perfectly align with your technical data sheet, we can engineer a custom solution for you.
How Can We Help?
Our technical team is ready to assist you in navigating ESD specifications to ensure your components are fully protected.
Contact us today for a technical consultation or a custom quote.
