5049 Series: Professional-Grade Static Control

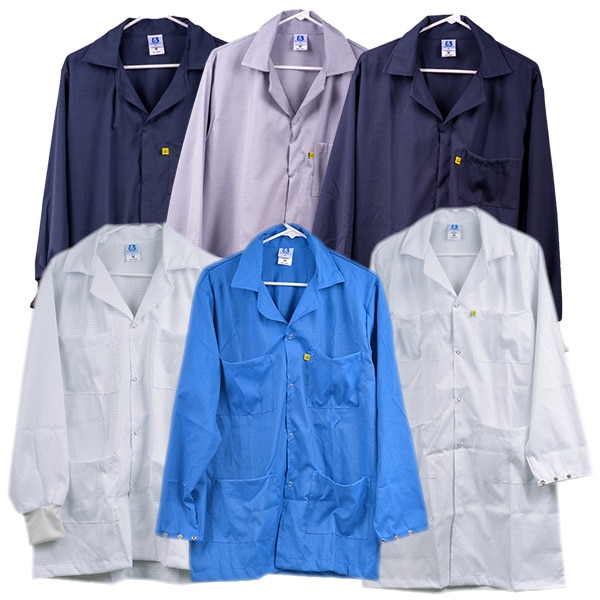

The Premium Cotton Poly ESD Jacket (5049 Series) is designed for professionals who require a reliable “Static Control Garment” without sacrificing comfort. Unlike standard synthetic smocks, our cotton-poly blend offers superior breathability and a structured fit that hangs crisply on the wearer, making it an excellent choice for climate-controlled production floors and cleanrooms.
Industry-Leading Static Control The fabric is woven with conductive fibers to create a Faraday cage effect, protecting sensitive electronic components from electrostatic discharge (ESD). This garment is fully compliant with ANSI/ESD Association S20.20 standards, ensuring your team remains grounded and your hardware remains safe.
Key Features & Benefits:
-
Superior Fabric Blend: Combines the softness of cotton with the durability of polyester for long-term industrial use.
-
Versatile Configurations: Choose from V-Neck or Collar styles, and customize your fit with Snap Cuffs or Knit Cuffs.
-
Professional Branding: Fully compatible with custom embroidery; add your company logo or employee names to maintain a unified corporate identity.
-
Standardized Performance: Specifically manufactured to meet the technical requirements for a certified static-shielding smock.
Applications:
-
Electronics Assembly & Manufacturing
-
Semiconductor Labs
-
Aerospace & Defense Engineering
-
Medical Device Production
Technical Specifications: 5049 Series
The Premium Cotton Poly ESD Jacket is engineered to meet the stringent requirements of a “Static Control Garment” as defined by ANSI/ESD S20.20. Its unique blend of materials ensures consistent grounding and high breathability.
| Dimension | Specification | Test Method |
| Composition | 76% Polyester 22.5% Cotton 1.5% Carbon | ASTM D-629 |
| Ounces Per Square Yard | 4.6 | ASTM D-3776-85 |
| Surface Resistance | 106-8 Ohms | DIN 54345 |
| Charge Decay | 0.5 seconds per 1000 volts | NFPA-99 |
Snaps for “Hands Free” Wrist Strap
Use | 4mm Stud on the Left
Hip, 4mm Socket Snap
inside the Left
Cuff | - |
| Weave | 6mm x 5mm grid | - |
| Friction Charges | 60 volts | JIS L1094-B |
| Air Permeability | 0.4 c.c/cm2/sec | JIS L1096-A-
1990 |
| Tear Strength ( Warp ) | 1600g | JIS L1096
6.15.5D |
| Tear Strength ( Weft ) | 1200g | JIS L1096
6.15.5D |
| Tensile Strength ( Warp ) | 100kg | JIS L1096 6.12A |
| Tensile Strength ( Weft ) | 54.3kg | JIS L1096 6.12A |
Physical Durability
-
Tensile Strength: 100kg (Warp) / 54.3kg (Weft) — JIS L1096 6.12A
-
Tear Strength: 1600g (Warp) / 1200g (Weft) — JIS L1096 6.15.5D
-
Weave Style: 6mm x 5mm Conductive Grid
Grounding Features
-
Hands-Free Integration: Includes a 4mm Stud on the left hip and a 4mm Socket Snap inside the left cuff for seamless wrist strap grounding.
-
Sizing Range: Available from Small through 5XL.
-
Compliance: Fully compliant with ANSI/ESD S20.20 2014 standards.
Technical Documentation: Download the Full 5049 Series Spec Sheet (PDF)
Laundering & Maintenance Instructions
To maintain the electrical integrity and prolong the life of your 5049 Series ESD Jacket, proper laundering is critical. Standard industrial cleaning or harsh chemicals can break down the carbon-suffused fibers, compromising the garment’s ability to dissipate static.
Best Practices for ESD Longevity
-
Detergent: Use only non-ionic, liquid detergents. Avoid powders or detergents with added “brighteners” or softeners.
-
Temperature: Machine wash in Cold or Warm water (100°F / 38°C maximum).
-
Drying: Tumble dry on Low heat or hang dry. High heat can cause the synthetic fibers to shrink or become brittle.
-
Bleach & Softeners: NEVER use bleach, starch, or fabric softeners. These coatings will insulate the conductive fibers and render the ESD protection useless.
Expected Service Life
Most ANSI/ESD S20.20 certified smocks are rated for approximately 80 to 100 washes when following these guidelines.
Warning: Using a standard “industrial washing service” that utilizes high-heat drying or harsh chemicals may degrade the garment’s effectiveness in as little as one cycle.
Testing Recommendation
We recommend testing your garments periodically using a surface resistance meter to ensure they still meet your facility’s ESD safety requirements.
ANSI / ESD S20.20 Compliance
A certified “Static Control Garment” is a critical component of any ESD Protected Area (EPA). The 5049 Series is designed to meet the rigorous standards set by the ESD Association to prevent costly damage to sensitive electronic components.
Understanding the Standard
According to ANSI/ESD S20.20, a compliant garment must maintain a surface resistance of less than 1 x 1011 Ohms when measured point-to-point.
Why the 5049 Series Complies:
-
Faraday Cage Effect: The integrated conductive grid (6mm x 5mm) acts as a shield, containing static charges generated by the wearer’s inner clothing and preventing them from reaching sensitive devices.
-
Point-to-Point Resistance: Rigorously tested to stay well within the 1 x 1011 Ohm limit, typically measuring in the 106 to 108 range.
-
Reliable Grounding: When used with the integrated hip stud and cuff snaps, the jacket can serve as a primary grounding path for the wearer, meeting the requirements for Garment System testing.
Testing & Verification
We recommend using the ESD TR53 “Garments Section” test method for your periodic compliance audits. Regular testing ensures that laundering or wear-and-tear has not compromised the conductive path of the garment.
Compliance Note: To maintain your facility’s S20.20 certification, ensure all personnel are trained on the proper laundering of these jackets to prevent insulative build-up from standard detergents.
Custom ESD Apparel Solutions
While we offer the 5049 Series in standard configurations, we provide extensive customization options for large-scale deployments and specific branding requirements.
Available Customizations:
- Custom Embroidery: Add company logos, department names, or individual employee names for a professional, unified look.
- Sizing Options: Standard sizes range from Small to 5XL. Custom sizing is available upon request for specialized fit requirements.
- Bulk Configurations: Choose between V-Neck or Collar styles and specialized cuff types (Snap or Knit) for your entire team.
- Color Matching: For large volume orders, we can discuss alternative color options to match your corporate branding.
How to Request a Custom Quote:
To help us provide an accurate estimate, please include the following in your request:
- Style & Quantity: Specify the preferred collar/cuff style and the total number of units.
- Size Breakdown: A rough estimate of the quantity per size (S-5XL).
- Branding Needs: Note if you require embroidery and provide a high-resolution logo file if available.
Note: Custom orders (including embroidery) typically involve a Minimum Order Quantity (MOQ) and extended lead times. Contact sales@4bennett.com for a detailed project timeline.
