Product Details & Technical Specifications
The 4700 Series Grounding Snaps are the industry standard for creating reliable, permanent grounding points on ESD protective matting. Whether you require a high-speed clinch installation for new mats or a versatile screw-in solution for field repairs, these snaps ensure your workspace meets the most stringent static control standards.
Compliance & Standards
-
ANSI/ESD S20.20: Compliant
-
ANSI/ESD S-6.1: Compliant (Grounding)
-
Snap Dimension: 10mm (3/8″) standard socket/stud size
Technical Data by Model
| Feature | 4730 Push & Clinch Snap | 4732 Universal Screw-In Kit |
|---|---|---|

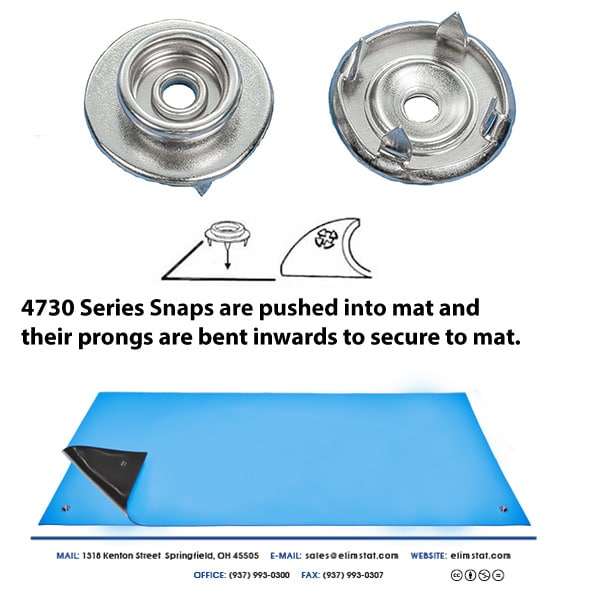

| Installation Style | Pronged Clinch (Push-Through) | Screw & Washer (Threaded) |
| Material Compatibility | Multi-layer Rubber or Vinyl | All soft materials up to 3/8" thick |

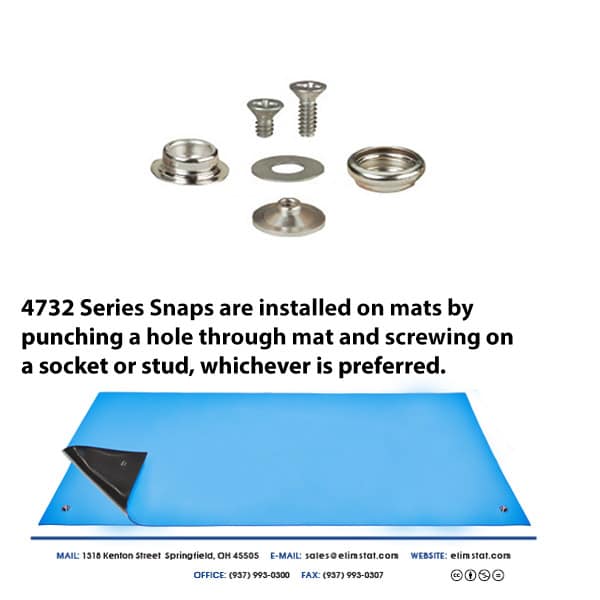

| Components | 10mm Socket or Stud | Stud, Washer, Nut, 2 Screws |
| Tools Required | Snap Press or Mallet | Phillips Screwdriver |
| Best For | High-volume bench setup | Field installation & thick matting |
| Hardware Finish | Nickel-Plated Brass/Steel | Nickel-Plated Brass/Steel |
Key Features
-
Universal Connection: The 10mm hardware is designed to integrate seamlessly with standard ESD Mat Grounds.
-
Low Profile Design: Once installed, the snaps provide a flush, secure fit that minimizes interference with delicate components or movement on the mat surface.
-
Reliable Conductivity: Designed without internal resistors to provide a direct, low-resistance path to ground.
Product Support Documents
Expert Tip: For optimal performance on Table Matting, we recommend installing two snaps per mat (at opposite corners) to provide redundancy and a more consistent path to ground across the entire work surface.
