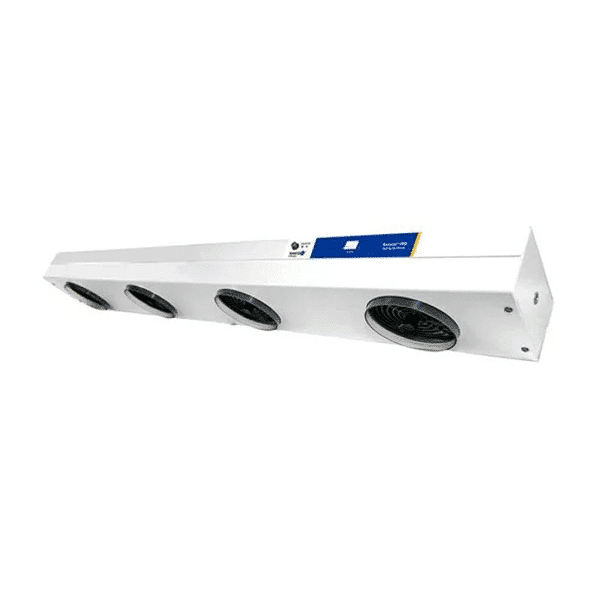

Aerostat® FPD High-Output Ionizing Blower
The Aerostat FPD (Flat Panel Display) series is engineered for high-performance static neutralization in environments requiring extended coverage and rapid discharge times. Designed specifically for the stringent requirements of the electronics and flat-panel industries, these blowers utilize reliable AC technology to provide a balanced stream of ionized air across a wide work area.
Key Features
-
Highly Reliable AC Technology: Provides a stable balance of positive and negative ions, ensuring consistent static neutralization even at high fan speeds.
-
Integrated Emitter Cleaners: Features built-in, easy-to-use emitter point cleaners to maintain peak performance with minimal downtime.
-
Scalable Coverage: Available in Two, Three, and Four-fan configurations to suit benchtop or overhead mounting applications.
-
Adjustable Airflow: Variable speed control allows operators to tailor the airflow to the sensitivity of the application, ensuring delicate components are not disturbed.
-
Low Maintenance Design: Designed for longevity in cleanroom and industrial environments with accessible components for routine servicing.
Technical Specifications
| Feature |
Details |
| Technology |
AC Ionization |
| Maintenance |
Built-in manual emitter point cleaners |
| Configurations |
2-Fan, 3-Fan, or 4-Fan models |
| Mounting |
Benchtop (with stand) or Overhead |
| Indicators |
Status lights for power and ionization |

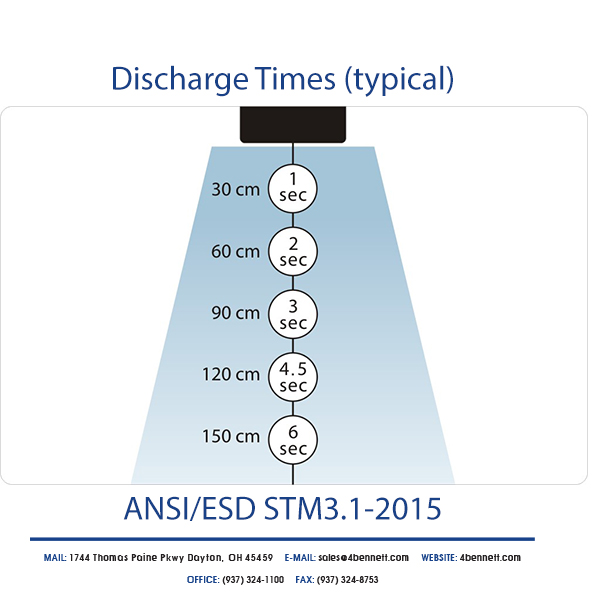

Rapid Static Discharge
The Aerostat FPD is optimized for speed. Its high-volume airflow allows for industry-leading discharge times, neutralizing static charges on non-conductive surfaces in seconds. This makes it an ideal solution for protecting sensitive components from Electrostatic Discharge (ESD) during assembly, testing, and packaging.
Ideal Applications
-
Flat Panel Display (FPD) manufacturing and assembly.
-
Semiconductor back-end processing.
-
Medical Device cleanroom packaging.
-
General Electronics benchtop workstations.
Pro Tip: For maximum efficiency in overhead applications, the 4-fan model provides the widest uniform “curtain” of ionized air, covering the entire width of a standard ESD workstation.
Technical Specifications
The Aerostat FPD series is designed for precision performance in critical cleanroom and manufacturing environments. Below are the operational parameters for the 2-fan, 3-fan, and 4-fan configurations.
| Dimension | Specification |
| Input Voltage | 120 VAC, 60 Hz: 0.3A (2-fan); 0.4A (3-Fan); 0.5A (4-fan) |
| Balance | 0±10V |
| Discharge Time | 1.0 seconds @ 1 foot (0.3m) center blower position; fan high(1000-100V) |
| Switch | ON/OFF Switch |
| Fan Speed | Recessed fan speed control |
| Indicators | Ionization ON light |
| Audible Noise | 59-69 dBA (max), measured @ 1' (0.6m) from blower |
| Operating Environment | Temperature 50-90F (10-32C); humidity 30-70% relative humidity, non-condensing |
| Ozone | Equilibrium concentration <0.02ppm |
| Air Filter | 30 ppi open cell polyurethane foam (optional) |
| Mounting | Stainless Steel Bracket |
| Enclosure | Powder-coated white enamel aluminum |
| Weight | 2-fan: 10 lb (4.5 kg); 3-fan: 13 lb (5.9 kg); 4-fan: 16 lb (7.3 kg) |
| Dimensions 2-Fan | 23.25 L x 4.0 H x 6.25 D (inches) | 590 L x 100 H x 160 D (mm) |
| Dimensions 3-Fan | 35.5 L x 4.0 H x 6.25 D (inches) | 900 L x 100 H x 160 D (mm) |
| Dimensions 4-Fan | 47.75 L x 4.0 H x 6.25 D (inches) | 1215 L x 100 H x 160 D (mm) |
| Warranty | Two year limited warranty |
Performance & Ionization
-
Discharge Time: 1.0 seconds @ 1′ (0.3m) center blower position (Fan High, 1000V–100V).
-
Ion Balance: ±10V self-balancing technology.
-
Ozone Production: Equilibrium concentration < 0.02 ppm.
-
Audible Noise: 59–69 dBA (maximum), measured at 2′ (0.6m) from the blower.
Electrical & Operation
-
Input Voltage: 120 VAC, 60 Hz.
-
Current Consumption:
-
2-Fan: 0.3A
-
3-Fan: 0.4A
-
4-Fan: 0.5A
-
Control Interface: Recessed fan speed control and dedicated ON/OFF power switch.
-
Status Indicators: Integrated Ionization ON light for real-time monitoring.
Mechanical & Environmental
-
Construction: Powder-coated white enamel aluminum enclosure with a durable stainless steel mounting bracket.
-
Operating Environment: 50–90°F (10–32°C); 30–70% RH, non-condensing.
-
Air Filtration: 30 ppi open-cell polyurethane foam (optional).
-
Warranty: Two-year limited manufacturer warranty.
Physical Dimensions
| Model |
Dimensions (L x H x D) |
Weight |
| 2-Fan |
23.25″ x 4.0″ x 6.25″ |
10 lb (4.5 kg) |
| 3-Fan |
35.5″ x 4.0″ x 6.25″ |
13 lb (5.9 kg) |
| 4-Fan |
47.75″ x 4.0″ x 6.25″ |
16 lb (7.3 kg) |
Installation Note
The Aerostat FPD is shipped with a versatile stainless steel bracket, allowing for secure mounting in either a benchtop (angled) or overhead (downward) orientation depending on your workspace coverage requirements.
Aerostat FPD vs. Cleanroom Guardian
The Aerostat FPD and Cleanroom Guardian and the are high-performance overhead units, they are designed for different environments and performance priorities.
At a Glance: Key Differences
| Feature |
Aerostat FPD |
Guardian CR2000 |
| Primary Environment |
Flat panel & general electronics assembly
|
Cleanroom applications (ISO Class 4 rated)
|
| Chassis Options |
2, 3, or 4-fan lengths
|
2 or 3-fan lengths
|
| Discharge Speed |
Extremely Fast (1.0s @ 1′)
|
Standard (3.0s @ 18″)
|
| Daisy-Chaining |
No |
Yes (Up to 10 units)
|
| Control Type |
Recessed fan speed
|
3-position Lockout key switch
|
Detailed Comparison
1. Environmental Suitability
2. Discharge Performance & Coverage
-
Aerostat FPD: Prioritizes speed and high-velocity airflow. It achieves a discharge time of 1.0 second at 1 foot. It also offers a 4-fan version for larger coverage needs, reaching up to a 4’W x 5’L area for benchtop applications.
-
Guardian CR2000: Offers a more balanced, steady delivery with a discharge time of 3.0 seconds at 18 inches. Its maximum size is the 3-fan version, covering up to a 2′ x 4′ area.
3. Monitoring & Security
4. Maintenance & Ease of Use
-
Both Units: Include a patented built-in emitter point cleaner, making routine maintenance fast and simple.
-
Aerostat FPD: Offers an optional fan air filter to protect internal components from environmental contamination in grittier factory settings.
-
Guardian CR2000: Offers superior utility for large installations via daisy-chaining, allowing up to 10 units to be powered from a single source.
Summary Recommendation
Choose the Aerostat FPD if…
-
Your primary goal is the fastest possible discharge time.
-
You have a large work area that requires a 4-fan chassis.
-
You are in a standard electronics assembly environment where air filtration might be necessary.
Choose the Guardian CR2000 if…
-
You are operating in a Cleanroom (ISO Class 4) environment.
-
You need to daisy-chain multiple units for a long production line.
-
You require tamper-proof controls (key switch) and detailed status monitoring.
Selecting the Right Configuration
Choosing between the 2, 3, or 4-fan models of the Aerostat FPD Blower depends on the dimensions of your work area and whether you intend to mount the unit on a benchtop or overhead.

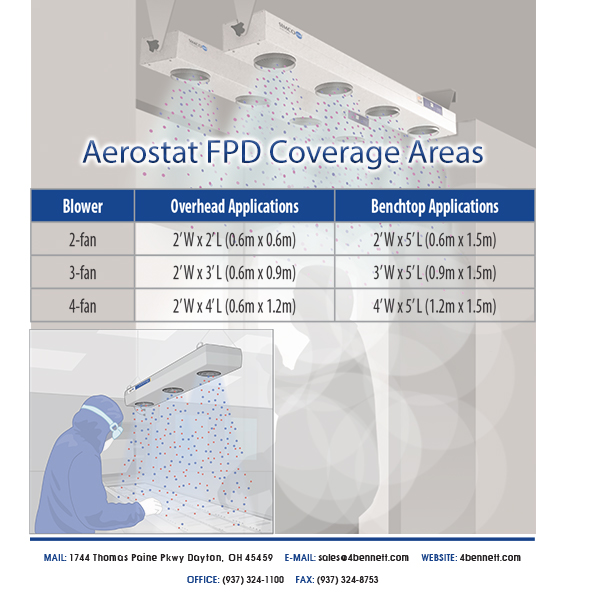

Coverage Area Comparison
The Aerostat FPD series is designed to create a uniform “curtain” of ionized air. Use the table below to match the model to your workspace:
| Model |
Effective Coverage (Benchtop) |
Effective Coverage (Overhead) |
Best For |
| 2-Fan |
2′ x 4′ (0.6 x 1.2m) |
2′ x 3′ (0.6 x 0.9m) |
Individual assembly stations |
| 3-Fan |
3′ x 4′ (0.9 x 1.2m) |
3′ x 3′ (0.9 x 0.9m) |
Standard 4-foot ESD workbenches |
| 4-Fan |
4′ x 4′ (1.2 x 1.2m) |
4′ x 3′ (1.2 x 0.9m) |
Large FPD panels and wide conveyors |
Configuration Guidance
-
The 2-Fan Model: Ideal for compact areas or targeted ionization. If your process involves small-form electronics or localized testing, this unit provides high-output protection without occupying excess space.
-
The 3-Fan Model: Our most popular choice for standard industrial workstations. It provides edge-to-edge coverage for most benchtop applications, ensuring that static is neutralized even at the periphery of the work zone.
-
The 4-Fan Model: Engineered specifically for the Flat Panel Display (FPD) industry and wide-track conveyors. When mounted overhead, it provides the widest possible ionization field, making it indispensable for large-surface-area substrates.
Mounting Considerations
-
Overhead Mounting: Provides a downward flow that clears the workspace of obstructions. Best for high-volume production lines.
-
Benchtop Mounting: Uses the included tilt-adjustable stand to aim ionization directly at the product. Best for manual assembly where precision airflow is required.
Need help calculating your specific discharge requirements?
Contact our technical team for a customized recommendation based on your cleanroom airflow and EPA (ESD Protected Area) dimensions.
Shipping & Delivery Information
Lead Times
-
Standard Processing: Due to the precision calibration required for the Aerostat series, this item typically has a lead time of 5 weeks.
-
Order Tracking: Once your order is processed and departs our facility, you will receive a confirmation email with real-time tracking information.
Domestic & International Shipping
-
Carrier Options: We primarily ship via UPS, FedEx, and DHL to ensure the safest handling of sensitive electronic equipment.
-
Packaging: All Aerostat FPD Blowers are shipped in specialized high-impact packaging to prevent damage to the emitter points and internal fan balance during transit.
Large Volume Orders
For orders exceeding 10 units, palletized freight shipping is recommended to reduce costs and ensure unit integrity. Please contact our sales team directly for a custom freight quote and coordinated delivery logistics.
Inspection Upon Receipt
Important Note: We recommend inspecting the exterior packaging for any signs of damage before signing for your delivery. If damage is present, please note it on the carrier’s delivery receipt to expedite any necessary insurance claims.
Don’t See the Exact Specs You Need?
At Bennett and Bennett, we understand that static control requirements are rarely “one size fits all.” If our standard stock of Ionization Equipment doesn’t perfectly align with your technical data sheet, we can engineer a custom solution for you.
How Can We Help?
Our technical team is ready to assist you in navigating ESD specifications to ensure your components are fully protected.
Contact us today for a technical consultation or a custom quote.
