Aerostat® PC 2 Compact Ionizing Blower
The Aerostat PC 2 is a compact, high-performance ionizing blower designed to provide localized static control in demanding electronics assembly and testing environments. Engineered for versatility, the PC 2 offers excellent discharge time performance while maintaining a small enough footprint to fit into the most congested workstations.
Precision Static Protection
The Aerostat PC 2 Blower utilizes Simco-Ion’s advanced AC technology to deliver a balanced stream of ionized air (±10V). This ensures that sensitive components are protected from Electrostatic Discharge (ESD) during delicate manual assembly or high-speed automated testing.
Key Features
-
Compact Design: Slim profile saves valuable benchtop real estate without sacrificing neutralization power.
-
FMS Compatibility: Fully integrates with Simco-Ion’s Facility Monitoring System (FMS), allowing for remote status alerts and performance data logging.
-
Integrated Emitter Cleaner: Features a built-in manual emitter point cleaner to ensure consistent ionization and reduce long-term maintenance requirements.
-
Variable Airflow: Adjustable fan speed allows operators to balance the need for rapid discharge with the requirement for low-velocity air in sensitive component handling.
-
Bi-Color Status LED: Provides immediate visual feedback on the unit’s power and ionization status.
Built for the Modern EPA
The Aerostat PC 2 is optimized for use in ESD Protected Areas (EPA) where space and reliability are paramount. Its self-balancing circuitry eliminates the need for frequent manual calibration, making it a “set-and-forget” solution for process engineers.
Flexible Configuration Options
To meet specific site requirements, the PC 2 is available in four distinct builds:
-
Stand-Alone: Standard high-performance ionization.
-
Alarm: Includes an audible alarm for immediate fault notification.
-
Heater: Features an integrated heater for operator comfort.
-
Combined: Includes both the heater and the audible alarm systems.
Design Tip: The PC 2 is particularly effective when used in tandem with the Aerostat XC 2 for facilities that require a mix of wide-area and localized point-of-use protection.
Technical Specifications
The Aerostat PC 2 is engineered for high-performance static discharge in a localized, space-saving form factor. Below are the detailed operational parameters for the PC 2 series.
| Dimension | Specification |
| Input Voltage | 120 VAC, 60 Hz; 2.0A, 250W, fuse 2.5A 250V Slo-Blo |
| Discharge Time | 2 seconds @ 1 Foot (30 cm); fan high (1000v to 100v) |
| Balance | ±10V |
| Coverage | 1 foot (W) x 4 foot (L) (30 x 122 cm) area |
| Ion Emission | Micropulse AC Ionizaton |
| Emitters | Stainless Steel |
| Controls | Power ON/OFF, FAN SPEED control LOW/MEDIUM/HIGH |
| Indicators | Green POWER on, red FAN alarm, red FAULT alarm LEDs |
| Audible Alarm | Fault and Fan stall (optional) |
| FMS Connector | RJ-9 4P/4C receptacle, relay contact rated +/- 24 VDC @ 0.2A max |
| Air Volume | 129 cfm (high fan speed) |
| Air Velocity | 370 fpm @ 12 inches; 240 fpm @ 24 inches; 120 fpm @ 48 inches (high fan) |
| Audible Noise | 61 dB (low fan speed); 64 dB (high fan speed) measured 2 feet in front of blower |
| Ozone | <0.05 ppm measured @ 1 foot (305 mm) in front of blower |
| Operating Environment | Temperature 50-95 Fahrenheit (10-35 Celsius); humidity 30-60% RH, non-condensing |
| Mounting Stand | Powder-coated aluminum with skid-resistant rubber feet. |
| Enclosure | Powder-coated aluminum |
| Air Filter | 30 ppi open cell foam filter with bracket (optional) |
| Dimensions | 9.1 inches (H), 6.8 inches (W), 3.3 inches (D) with stand; (23.1H x 17.3W x 8.4D cm) with stand |
| Weight | 2.8 lbs (1.25 kg) with stand with skid-resistant rubber feet |
| Warranty | Two-year limited warranty |
Performance & Ionization
-

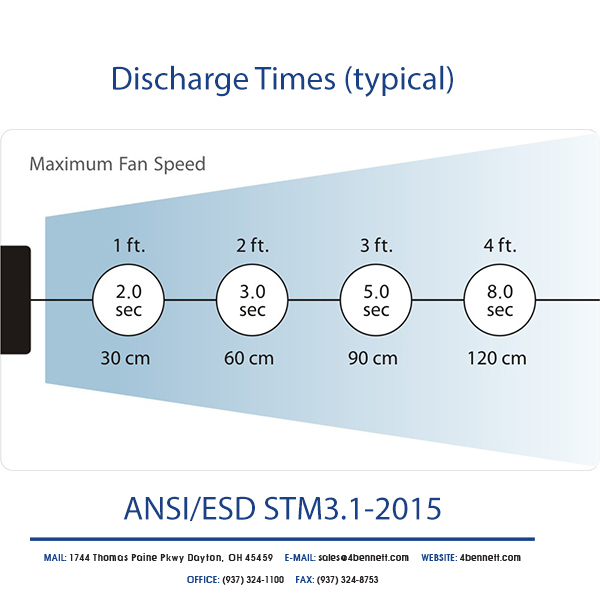

Discharge Time: 2.0 seconds @ 1′ (30cm) distance (Fan High, 1000V to 100V).
-
Ion Balance: ±10V self-balancing technology.
-
Technology: Patented MicroPulse AC Ionization.
-
Coverage Area: Effective neutralization for a 1′ (W) x 4′ (L) work zone.
-
Ozone Production: < 0.05 ppm (measured 1′ in front of the unit).
Airflow & Audio
-
Air Volume: 129 CFM (at high fan speed).
-
Air Velocity: * 370 FPM @ 12″
-
240 FPM @ 24″
-
120 FPM @ 48″
-
Audible Noise: 61 dB (Low) to 64 dB (High), measured 2′ from the unit.
Electrical & Connectivity
-
Input Voltage: 120 VAC, 60 Hz; 2.0A (250W).
-
FMS Interface: RJ-9 4P/4C receptacle; relay contact rated $\pm 24$ VDC @ 0.2A max.
-
Controls: Dedicated Power ON/OFF and variable 3-speed fan control (Low/Medium/High).
-
Visual Indicators: * Green: Power ON
Mechanical & Environmental
-
Enclosure: Durable powder-coated aluminum.
-
Mounting Stand: Powder-coated aluminum with skid-resistant rubber feet.
-
Operating Temp: 50–95°F (10–35°C); 30–60% RH, non-condensing.
-
Weight: 2.8 lbs (1.25 kg) including the stand.
-
Dimensions: 9.1″ H x 6.8″ W x 3.3″ D (with stand).
Compliance & Quality
-
Emitter Points: Industrial-grade Stainless Steel.
-
Warranty: Two-year limited manufacturer warranty.
-
Optional Equipment: 30 ppi open-cell foam air filter with bracket.
Technical Note: The Aerostat PC 2 is optimized for point-of-use applications. For facilities requiring wider “curtain” coverage, consider the Aerostat XC 2 as a complementary overhead solution.
Patented MicroPulse Technology
The Aerostat PC 2 utilizes proprietary MicroPulse technology to deliver superior static neutralization. Unlike traditional AC ionizers that produce a constant stream of ions that can quickly recombine and neutralize each other, MicroPulse technology uses a high-frequency, pulsed discharge.
Why It Matters
-
Reduced Ion Recombination: By pulsing the corona discharge, MicroPulse technology ensures that more ions reach the target surface rather than neutralizing each other in the air.
-
Extended Maintenance Cycles: This technology reduces “fuzz” (dirty emitter points) buildup. While the Aerostat PC 2 includes a built-in cleaner, the pulsed system ensures the unit maintains peak performance and balance stability for much longer intervals between cleanings.
-
Superior Balance Stability: The system is inherently self-balancing (±10V), meaning you don’t have to worry about the blower accidentally “charging” your sensitive components due to an unbalanced ion stream.
Efficiency Meets Precision
In the compact form factor of the Aerostat PC 2, MicroPulse technology allows the fan to operate at lower, quieter speeds while still achieving the rapid discharge times required for high-speed electronics assembly. This results in a more comfortable work environment for operators without sacrificing ESD safety.
Comparison: MicroPulse vs. Standard AC
| Feature |
Standard AC Ionization |
Simco-Ion MicroPulse |
| Ion Recombination |
High (lower efficiency) |
Minimal (high efficiency) |
| Balance Stability |
Manual adjustment often required |
Automatic self-balancing |
| Maintenance |
Frequent cleaning needed |
Extended intervals |
| Target Area |
Localized |
Localized & Extended |
Pro Tip: To maintain the benefits of MicroPulse technology, use the integrated push-button emitter cleaner once per week to ensure the pulse discharge remains unobstructed.
Shipping & Delivery Information
Lead Times
-
Standard Processing: Due to the precision calibration required for the Aerostat series, this item typically has a lead time of 2 weeks.
-
Order Tracking: Once your order is processed and departs our facility, you will receive a confirmation email with real-time tracking information.
Domestic & International Shipping
-
Carrier Options: We primarily ship via UPS, FedEx, and DHL to ensure the safest handling of sensitive electronic equipment.
-
Packaging: All Aerostat® PC 2 Blower are shipped in specialized high-impact packaging to prevent damage to the emitter points and internal fan balance during transit.
Large Volume Orders
For orders exceeding 10 units, palletized freight shipping is recommended to reduce costs and ensure unit integrity. Please contact our sales team directly for a custom freight quote and coordinated delivery logistics.
Inspection Upon Receipt
Important Note: We recommend inspecting the exterior packaging for any signs of damage before signing for your delivery. If damage is present, please note it on the carrier’s delivery receipt to expedite any necessary insurance claims.
Don’t See the Exact Specs You Need?
At Bennett and Bennett, we understand that static control requirements are rarely “one size fits all.” If our standard stock of Ionization Equipment doesn’t perfectly align with your technical data sheet, we can engineer a custom solution for you.
How Can We Help?
Our technical team is ready to assist you in navigating ESD specifications to ensure your components are fully protected.
Contact us today for a technical consultation or a custom quote.
